Roadinger Effect Rack CO DD 24 cm 2U
Merke: Roadinger
Serie:
1399,0 kr
Inkl. mva.
- 100% norsk bedrift
- Betalingsutsettelse med klarna
- Rabatt på neste kjøp mot produktvurdering
Bestillingsvare
BeskrivelseApplikasjonerSpesifikasjoner
Flightcase for 483 mm units (19″)Transport your 483 mm control and effect units (19″) easily and safely with the ROADINGER effect rack CO DD. Two removable lids (double-door version), four large, steel-reinforced rubber feet and built-in rack rails make handling with the flightcase easy and comfortable.Multi-layered glued wood, the stable aluminium profile frame with rounded corners and three-legged, medium-sized steel ball corners give the case stability.The flight case is equipped with four snap locks with eyelets for locking, built-in rack rails and a case handle. The maximum load is 20 kg.
Rack case
- Built-in rack rails
- 2 U
- High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated
- 2 removable covers (double-Door-Version)
- Aluminum profile frames 22mm with rounded edges
- Rugged carrying handle
- 4 high-quality spring locks with shut-off function
- Rubber feet
- Available in different height units (1 U = 44 mm)
- With profile rails suitable for 19" units
- For further information about this product, please refer to the Data Sheet under "Downloads"
| Maximum load: | 20 kg |
| Removable covers: | 2 pc/pcs |
| Aluminum profile frames: | 22 mm |
| Carrying handle: | 1 pc/pcs |
| Lock: | Spring lock: 4 pc/pcs with shut-off function |
| Transport aid: | Rubber feet |
| Material: | Plywood multi-layer glued, 7 mm |
| Color: | Black, laminated |
| Front panel width: | 19" |
| Mounting height: | Approx. 9 cm (2 U) |
| Mounting depth: | 250 mm |
| Housing design: | 2 U |

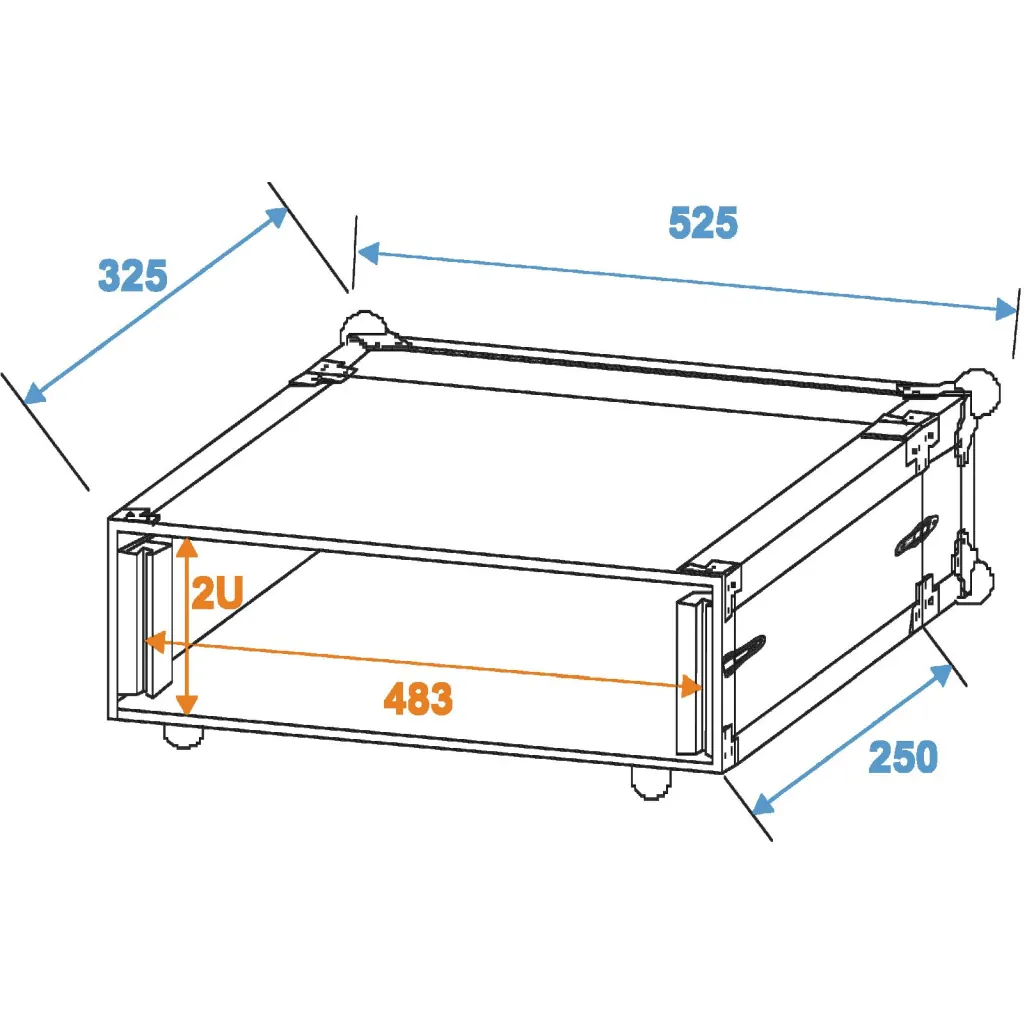

| Dimensions: | Width: 52,5 cm Depth: 38 cm Height: 13,5 cm |
| Weight: | 4,40 kg |
Applikasjoner med Roadinger Effect Rack CO DD 24 cm 2U
Spesifikasjoner
| Maks belastning | 20 kg |
| Aluminiumsprofilrammer | 22 mm |
| Bærehåndtak | 1 stk/stk |
| Sommerfugllåser | Med avstengningsfunksjon |
| Fjærlåser | 4 stk/stk med avstengningsfunksjon |
| Transporthjelp | Gummi føtter |
| Materiale | Kryssfiner limt, 7 mm |
| Farge | Sort, laminert |
| Frontpanelets bredde | (19″) ca. 48 cm |
| Monteringshøyde | Ca. 9 cm (2 U) |
| Monteringsdybde | 250 mm |
| Husdesign | 2 U |
| Bredde | 52,5 cm |
| Dybde | 40 cm |
| Høyde | 13,5 cm |
| Vekt | 4,40 kg |
